Precision Lubrication Engineering · Est. 2018 Quanzhou, China

Industrial Hydraulic Oils & Lubricants in 208L Steel Drums

Formulated with virgin Group II/III hydrocracked base oils and premium additive systems. Meeting DIN 51524-2 (HLP), ISO 11158, and Parker Denison HF-0 standards. Supplied in UN-certified 200L/208L cold-rolled steel drums and 1000L IBC totes for worldwide container export via Xiamen Port.

Use Smart Oil Advisor 20GP Container Loading Calculator
2018 Founded in Quanzhou
80 Drums 20GP Standard Palletized
100% CoA Pre-Shipment Lab Tested
35%-45% Cost Advantage vs Majors

Standard Export Packaging Specs

UN 1A1 Certified

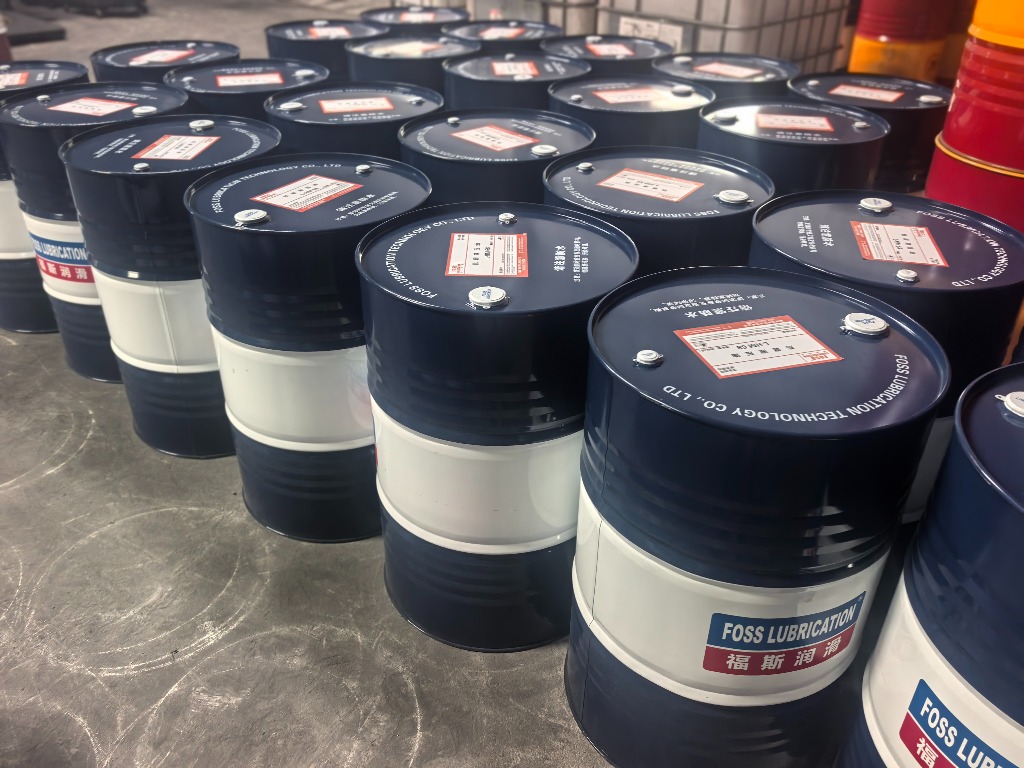

FOSS LUBRICATION genuine 208L cold-rolled steel drums in factory workshop
✓ Genuine FOSS 208L Factory Stock · Est. 2018
  • Wall Thickness: 1.0mm - 1.2mm high-tensile cold rolled plate
  • Tare Weight: 18.5 kg - 19.5 kg per empty drum
  • Payload / 20GP: 80 Drums (16,640L) palletized; Gross: ~15.8 MT
  • OEM Options: Custom baking enamel colors (Blue, Red, Yellow) & screen printing
Explore Drum Dimensions & Container Specs →
Interactive Sourcing Tool

Smart Industrial Lubricant & Viscosity Advisor

Select your machinery type and operating environment to instantly match the recommended ISO VG viscosity grade, DIN/ISO specification, and equivalent cross-reference.

ISO VG 46 (HLP)

FOSS L-HM 46 High-Pressure Anti-Wear Hydraulic Oil

Formulated with high-purity paraffinic Group II base oil and advanced zinc anti-wear additives. Superb demulsibility (water separation <= 15 min) and low sludge formation.

DIN 51524 Part 2, ISO 11158 HM, Denison HF-0
  • Cross-Ref: Mobil DTE 25 / Shell Tellus S2 M 46
  • 40°C Viscosity: 46.2 mm²/s
  • Flash Point: 232 °C
  • Export Pkg: 208L Steel Drum / IBC
View Full TDS Spec
Logistics Engineering Tool

208L Steel Drum & IBC Container Loading Calculator

Optimize your ocean freight payload. Accurately calculate drum count, pallet arrangement, liquid volume, and gross weight limits for 20ft GP and 40ft HQ containers departing from Xiamen Port.

20ft GP Container Standard 20' Dry (Payload: ~21.5T)
40ft HQ Container High Cube (Payload Capped ~26T)
Calculated automatically based on container dimensions and weight limits.

Shipment Loading Breakdown (Xiamen Port FOB)

Packaging Units 80 Drums
Total Liquid Volume 16,640 L
Est. Cargo Net Weight 14.56 MT
Total Gross Weight (Drums + Cargo) 16.48 MT
Standard 20GP: 20 pallets (4 drums/pallet), loaded in 2 tiers. Mechanized fork handling compliant.

* Note: Heavy liquid lubricants are volume-dense. 40ft HQ containers are strictly capped by road weight regulations (~25.5 - 26 MT total gross weight) rather than cubic volume.

Engineered Formulations

Core Industrial Hydraulic & Lubricant Portfolio

Every batch blended with premium hydrotreated Group II base oils and lab-verified additive chemistry. Available in UN 208L steel drums, 1000L IBCs, and 18L pails.

FOSS L-HM 46 High-Pressure Anti-Wear Hydraulic Oil 208L Steel Drums in Factory Real FOSS Factory 208L Drums
ISO VG 46 · HLP Core Export SKU · 208L Drum

FOSS L-HM 46 High-Pressure Anti-Wear Hydraulic Oil

High-Cleanliness Formula for Plastic Injection Molding & High-Pressure Systems

China’s top industrial replacement for Mobil DTE 25 and Shell Tellus S2 M 46. Exceptional demulsibility ensures rapid water drop-out (≤ 12 min), eliminating sludge, varnish, and valve stickiness in Haitian, Chen Hsong, and Yizumi injection presses.

Kinematic Viscosity @ 40°C: 46.2 mm²/s (ASTM D445)
Flash Point (Cleveland Open Cup): 232 °C (ASTM D92)
Pour Point: -15 °C (ASTM D97)
FZG Scuffing Failure Load Stage: Pass Stage 11 (DIN 51354)
Cleanliness Class: ISO 4406 Class 18/16/13
Standard Specifications: DIN 51524 Part 2, Denison HF-0/HF-1/HF-2, Vickers M-2950-S
Ready Stock: 200+ Drums Full Technical Dossier →
ISO VG 46 · HVLP 208L Drum / IBC

FOSS L-HV 46 Wide-Temperature Hydraulic Fluid

Viscosity Index ≥ 155 · Pour Point -42°C

Engineered with shear-stable polymethacrylate viscosity index improvers. Prevents pump cavitation during cold morning startups and avoids oil film breakdown in hot afternoon desert operations.

40°C Viscosity:45.8 mm²/s
100°C Viscosity:8.2 mm²/s
Viscosity Index:155
Pour Point:-42 °C
Standards:DIN 51524-3 (HVLP), ISO 11158 HV
View HV Series
ISO VG 46 / 68 Zinc-Free Formula

FOSS L-HM 46 Ashless Hydraulic Oil

Silver & Copper Component Protection

Zinc-free and calcium-free additive chemistry prevents chemical corrosion on silver-plated bushings and bronze axial piston pump slippers. Excellent hydrolytic stability.

Zinc Content:< 10 ppm (Zinc-Free)
FZG Stage:Pass Stage 11
Copper Corrosion:1a (ASTM D130)
Standards:Denison HF-0, Cincinnati P-69
View Ashless Spec
HFC 46 · Anti-Fire Specialty Fluid

FOSS 4631 Water-Glycol Hydraulic Fluid

Zero Flash Point · 40% Deionized Water

Formulated for aluminum die-casting machines, blast furnace charging, and steel rolling mills. Non-flammable water-glycol composition eliminates mist ignition risks.

Flash Point:None (Self-Extinguishing)
Water Content:40.5% (ASTM D1744)
Pour Point:-36 °C
Standards:ISO 12922 HFC, 7th Lux Report
View Fire-Resistant Spec
ISO VG 220 / 320 208L Steel Drum

FOSS L-CKD 220 Heavy-Duty Gear Oil

Extreme Pressure & Anti-Micropitting

Sulfur-phosphorus EP chemistry engineered for heavy enclosed gear reducers in cement kilns, ball mills, and container port cranes subjected to heavy shock loads.

FZG Scuffing Stage:Pass Stage ≥ 12
Four-Ball Weld Load:> 250 kgf (ASTM D2783)
Flash Point:246 °C
Standards:DIN 51517-3 (CLP), AGMA 9005-E02
View Gear Oil Line
ISO VG 32 / 46 4,000h+ Drain Interval

FOSS L-DAH 46 Rotary Screw Compressor Oil

High Thermal & Oxidation Stability

Specially selected synthetic/hydrotreated blend preventing carbon and sludge buildup on screw rotors and separator filters up to 100°C discharge temperatures.

Drain Interval:4,000 - 6,000 Operating Hours
Air Release Time:≤ 5 min @ 50°C (ASTM D3427)
Flash Point:235 °C
Standards:DIN 51506 VDL, ISO 6743-3 DAH
View Compressor Oil
Export Integrity

UN-Certified 208L Steel Drum Engineering

Hydraulic oil ocean transit demands zero leakage, puncture resistance, and corrosion-free drum interiors. Every drum exported by FOSS LUBRICATION complies with international sea-freight packaging norms.

1.0mm - 1.2mm Cold-Rolled Steel

Heavy-gauge steel body with multi-ribbed hoop reinforcement. Passed UN 1.8m drop testing and 250 kPa hydraulic pressure tightness tests.

Dual-Screw Tamper-Evident Bungs

G2 (2-inch) main fill bung and G3/4 (3/4-inch) breather opening with nitrile sealing gaskets and zinc-plated anti-counterfeit metal crimp seals.

OEM Custom Stenciling & Color

High-temperature baking enamel in classic Blue, Red, Yellow, or Grey. Precision silkscreen printing of buyer private-label logos and multilingual labels.

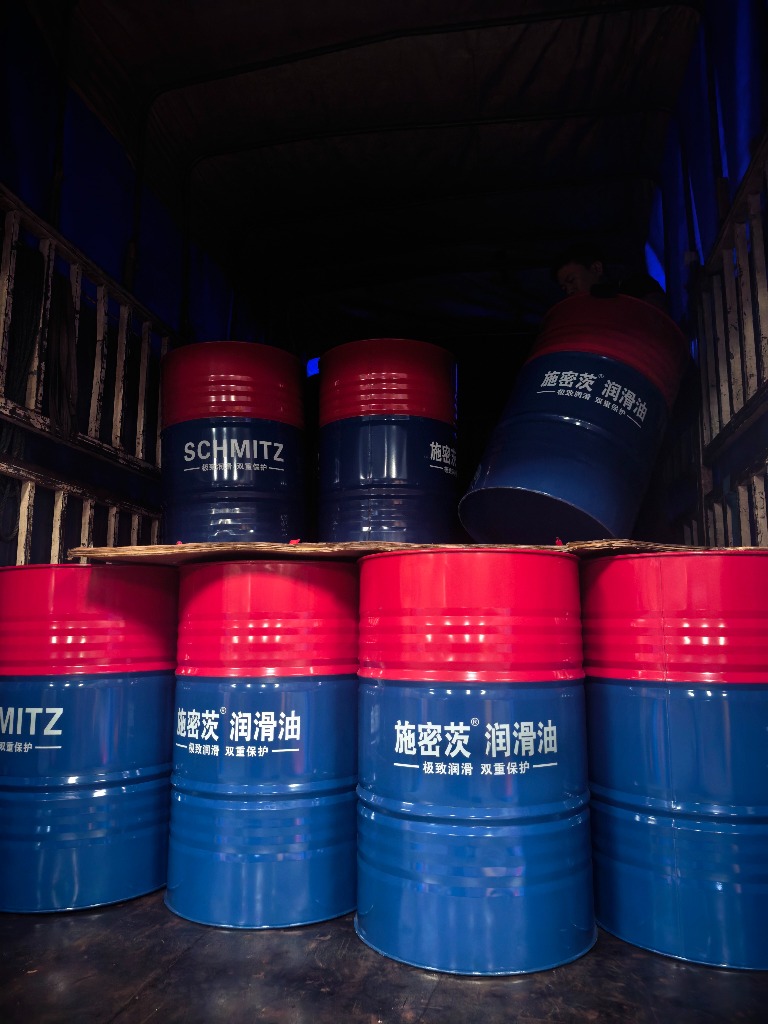

Two-tier 208L steel drum container loading with dunnage boards
Two-Tier Container Dunnage Loading Heavy-duty solid separator boards prevent ocean freight transit denting (80 drums / 20GP).

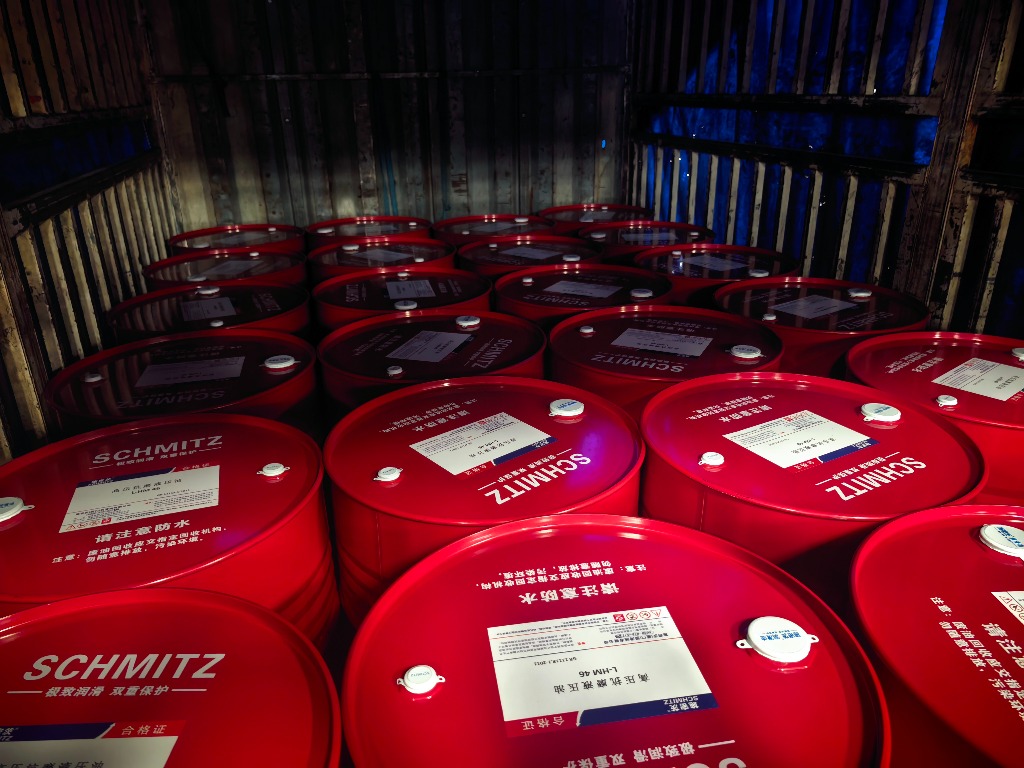

L-HM 46 high pressure hydraulic oil drums sealed in container
Weather-Sealed L-HM 46 Drum Tops Baked-enamel weather lids, certified inspection labels, and dual tamper-proof caps.
Direct Manufacturing Scale

Quanzhou Blending Plant & Bulk Storage Infrastructure

Eliminate trading middleman markups. FOSS operates dedicated computerized stainless steel blending kettles, an 8-silo outdoor base oil tank farm, digital weighing fill lines, and robotic palletizing cells in Quanzhou, Fujian.

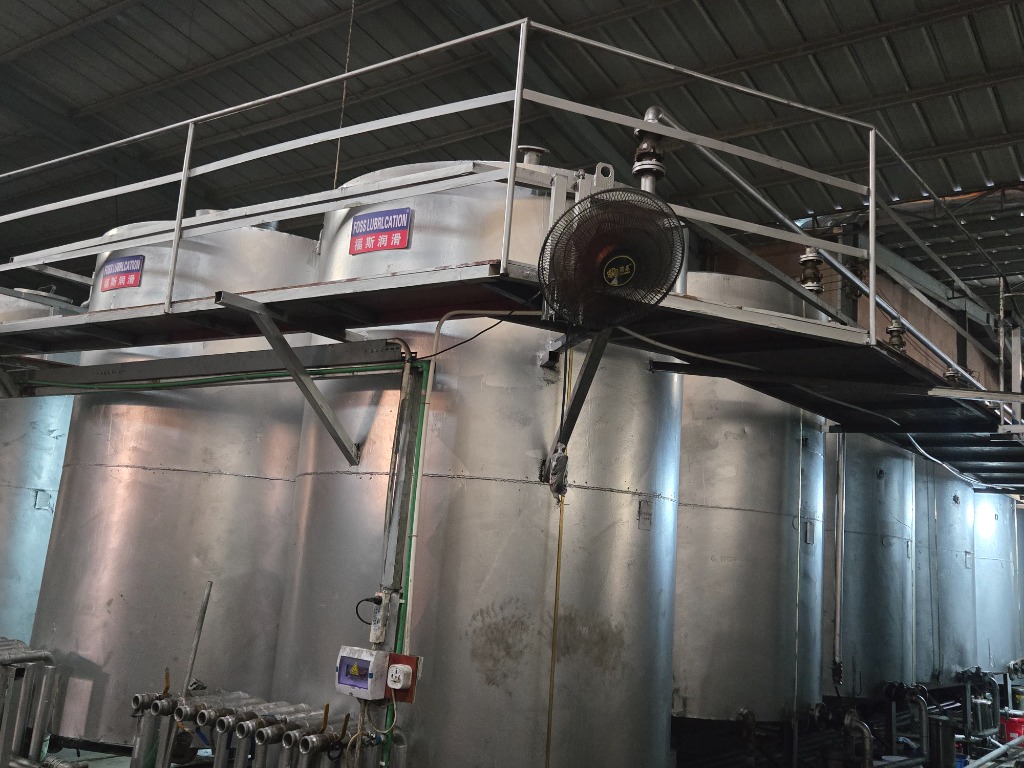

Automated stainless steel blending kettles with FOSS LUBRICATION 福斯润滑 signage and piping manifolds
Verified Factory Ownership

Stainless Steel Blending Battery

Automated kettles with mounted "FOSS LUBRICATION 福斯润滑" identity plates, walkways, and bottom distribution manifolds.

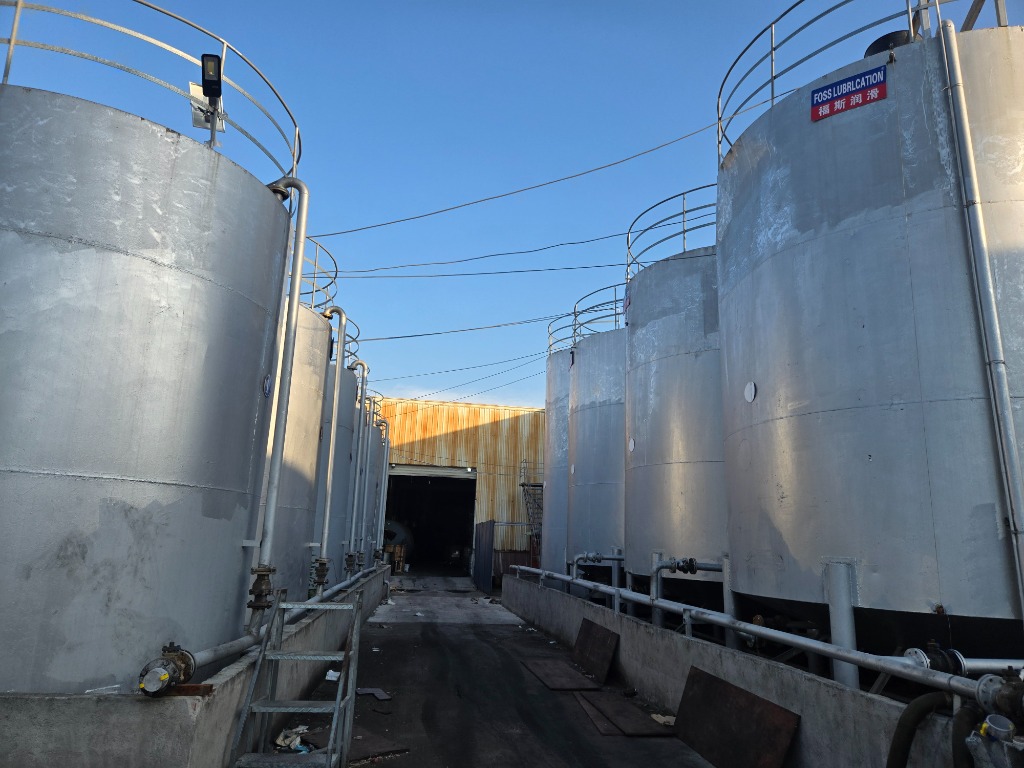

Outdoor bulk base oil silo farm with secondary containment bund wall and transfer pipelines
Raw Material Silos

Outdoor Bulk Storage Silo Battery

Dual rows of high-capacity vertical cylindrical steel silos (Tanks 1 to 8) with secondary containment bund walls and transfer piping.

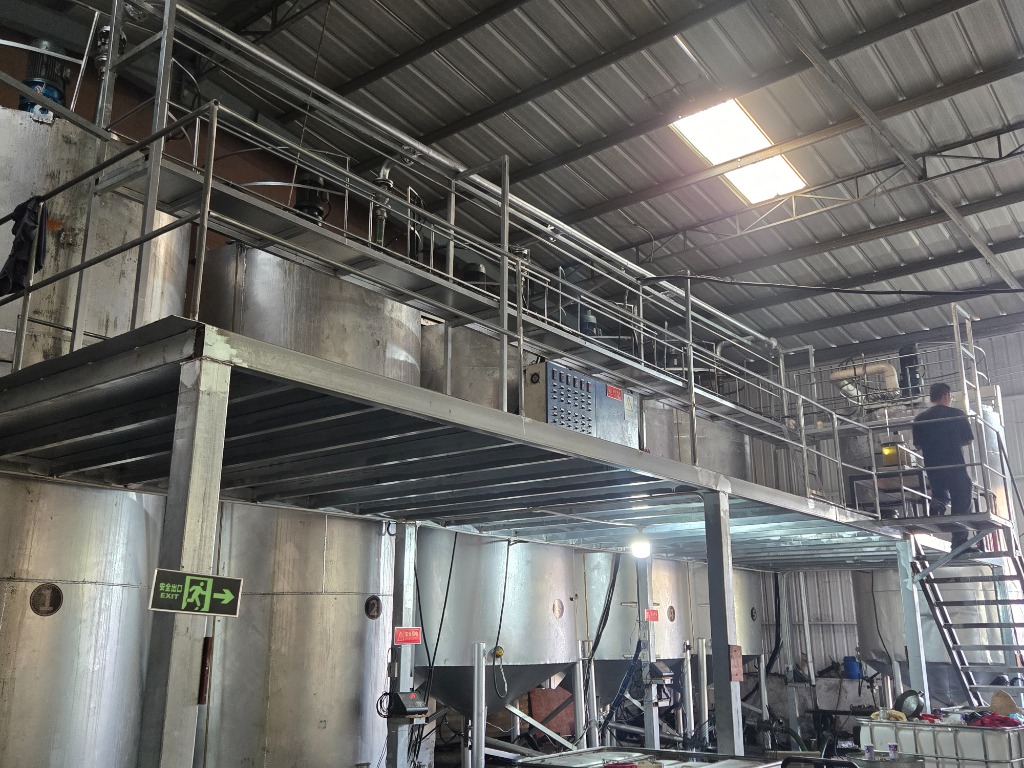

Two-level industrial mezzanine blending plant with electrical motor console and conical vessels
Mezzanine Plant

Two-Level Blending Mezzanine

Centralized electrical motor console, agitation drives, operator walkways, and gravity-assisted conical discharge kettles.

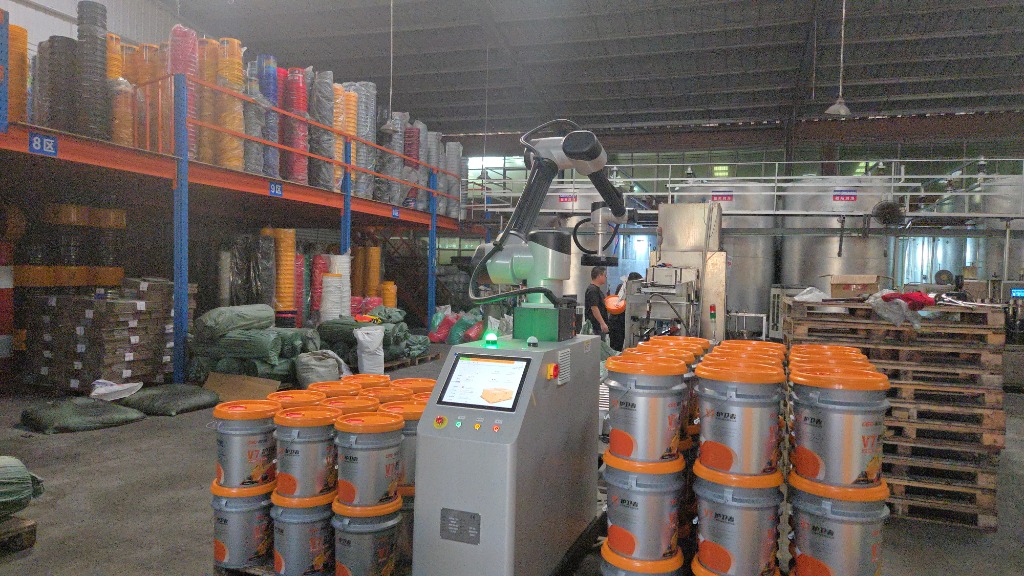

High-tech 6-axis robotic palletizing arm stacking lubricant pails onto wooden export pallets
Robotic Automation

6-Axis Robotic Palletizing Cell

Collaborative robotic packaging arm with touchscreen interface, automating high-speed palletizing for rapid export turnarounds.

Quality Assurance

5-Step Standardized B2B Sourcing Protocol

Transparent, rigorous and contractual. We ensure what is tested in the sample bottle is 100% identical to the 80 drums loaded into your container.

Step Stage Actions & Deliverables Timeframe Buyer Role Verification
01 Technical Matching Review equipment OEM specs, viscosity grade (ISO VG 32/46/68), and operating temperature window. Within 24 Hours Technical Evaluator (Quality/Chief Engineer)
02 Sample Testing Dispatch 1L to 4L laboratory retain sample with authenticated Certificate of Analysis (CoA) via DHL/FedEx. 3 - 5 Days Lab Viscometer & Water Demulsibility Check
03 Commercial Proforma Issue formal Proforma Invoice (PI) with fixed FOB Xiamen or CIF pricing per drum, container loading breakdown. 1 Day Procurement Director & Economic Buyer
04 Batch Blending & QA Computerized automated blending, multi-stage 5-micron filtration, UN steel drum filling, and pre-shipment CoA issue. 7 - 10 Days Full ASTM D445 / D92 / D97 Batch Test Record
05 Port Delivery & BL Trucking to Xiamen Port container terminal, customs declaration under HS Code 27101991, Bill of Lading issue. 3 - 5 Days Logistics & Customs Clearance Team
Technical Knowledge Base

Frequently Asked Questions for Procurement Engineers

Essential answers covering viscosity selection, container freight loading, and batch certification.

How many 208L steel drums can be loaded into a 20ft container?
In standard palletized loading, exactly 80 drums (20 pallets with 4 drums each, stacked in 2 tiers) fit securely into a 20ft GP container. Total liquid volume is 16,640 Liters, and gross weight is approximately 15.8 MT to 16.2 MT, safely below worldwide highway limits.
Can FOSS L-HM 46 replace Mobil DTE 25 or Shell Tellus S2 M 46?
Yes. FOSS L-HM 46 complies with DIN 51524-2 (HLP) and ISO 11158 HM standards, offering equivalent 40°C viscosity (46.2 mm²/s), demulsibility time under 15 minutes, and FZG failure stage 11. It delivers equivalent anti-wear protection for injection molding machines at a 30% to 45% factory-direct cost savings.
What is the difference between DIN 51524 Part 2 (HLP) and Part 3 (HVLP)?
Part 2 (HLP) is formulated for stationary industrial machines operating in indoor, temperature-controlled facilities (Viscosity Index 95-105). Part 3 (HVLP) incorporates shear-stable viscosity index improvers, yielding a VI ≥ 150 and low pour points (-35°C to -42°C) essential for outdoor mobile excavators and loaders.
Does FOSS LUBRICATION provide private label OEM services?
Yes. We offer complete private label toll blending for overseas machinery manufacturers and oil distributors. Capabilities include custom drum paint color matching, precision silkscreen printing of buyer logos, laser batch coding, and strict non-disclosure protection.
Direct Factory RFQ

Request Official Quotation & Sample Test Pack

Submit your lubricant requirements below. We provide formal FOB Xiamen / CIF pricing and dispatch 1L-4L test samples within 3 business days.
